CTB PERFORMANCE PARTS

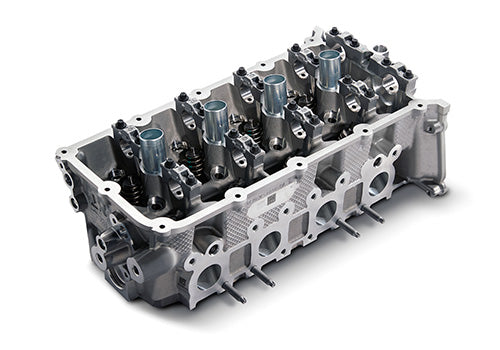

5.2L "GEN 3" RH CYLINDER HEAD
- Regular price
- $5,350.00
- Sale price
- $5,350.00
- Regular price
-
- Unit price
- per
- Availability
- Sold out - $5,350.00
NZ pricing · GST included where applicable
Product information
-
- Upgraded version of Ford Performance M-6049-M52A 5.2L cylinder head
- Production 2021 GT500 RH cylinder head
- Improved high-performance 5.2L head castings provide added strength and increased size of central cooling passages, to support higher horsepower engine builds
- Fully CNC ported intake ports, exhaust ports and combustion chamber
- Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
- 38.3mm intake valve and 32.5mm exhaust valve
- 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
- New valvetrain geometry allows for higher valve lift
- Lightweight hollow-stem intake valves and sodium-filled exhaust valves
- Stiffer exhaust valve springs
- Upgraded valve guides
- Upgraded exhaust valve seat
- Loaded head assembly minus camshafts, rocker arms and lash adjusters
- To use on 5.0L Coyote requires unique camshaft due to valvetrain geometry, see
- Requires 5.2L rocker arms and lash adjusters,
- Requires head changing kit
- Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance
- For LH cylinder head see M-6050-M52B
